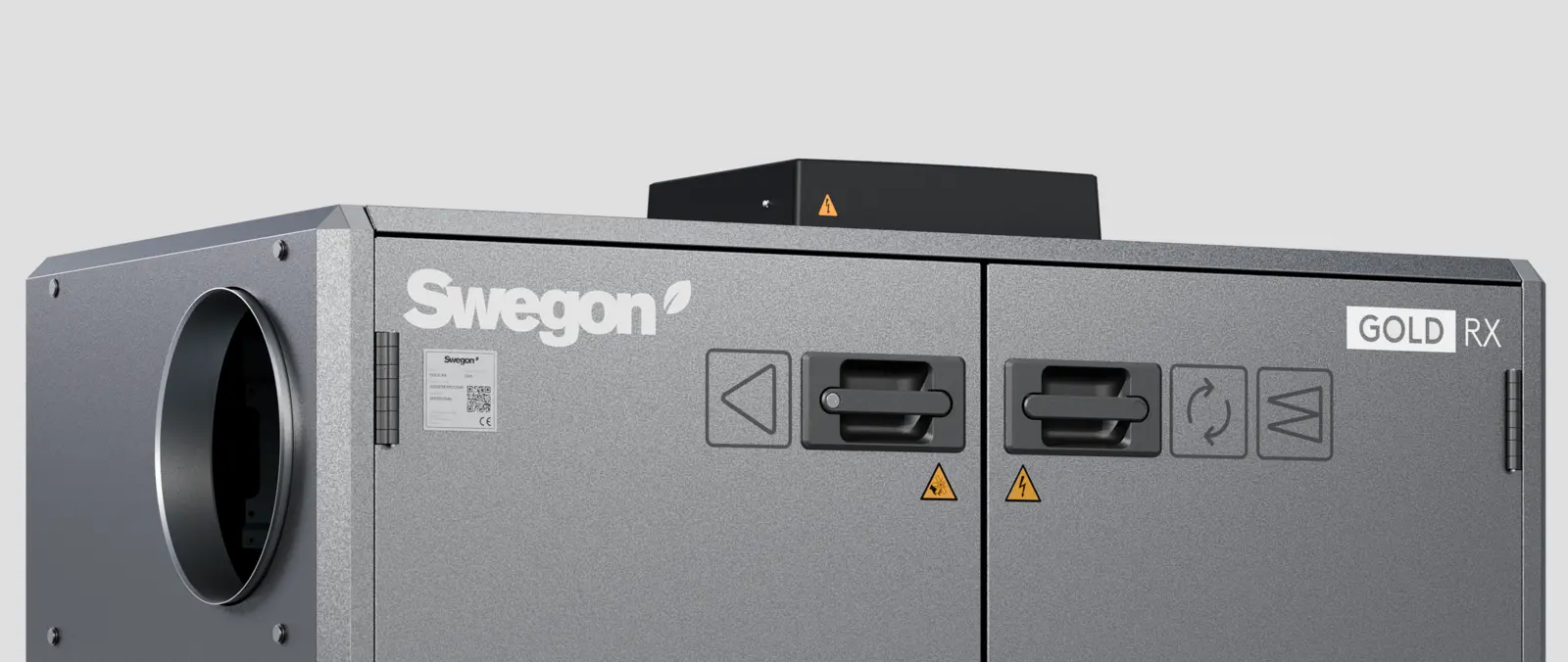

GOLD

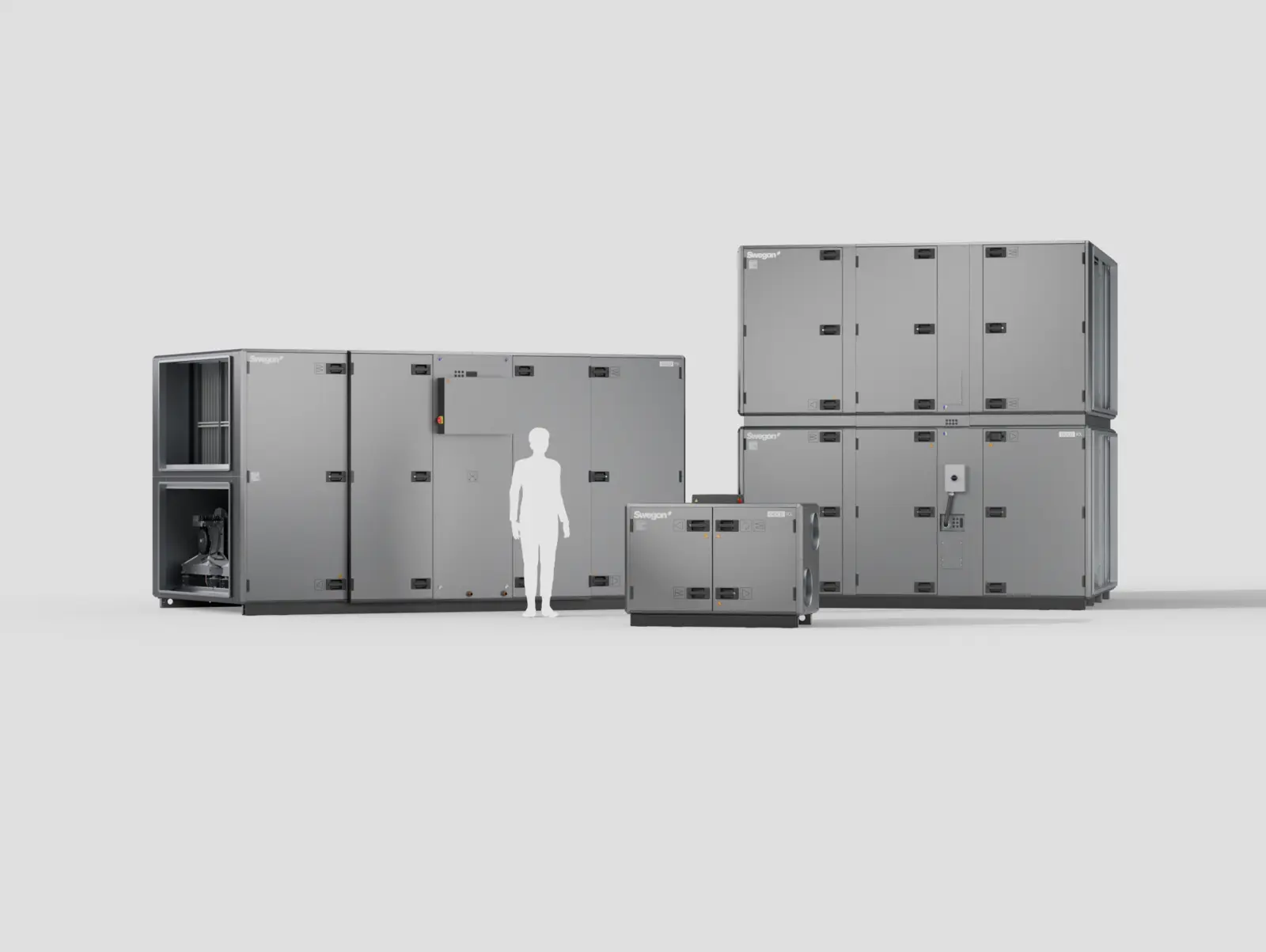

A premium range of configurable air handling units, covering a wide airflow range, all types of heat exchangers and suitable for most applications. Best-in-class control system. Fully integrated and with extensive, adaptable functionality to ensure the lowest possible life cycle cost and energy-efficient ventilation.

Why GOLD?

World-class energy efficiency
Recycled and renewably produced steel inside-out lowers carbon footprint by around 30%
Excellent casing performance U1, TB2, L2, D1
Inhouse developed components, including rotary heat exchanger, fan assembly and control equipment
Fully integrated controls, with unrivalled functionality
Easy to adapt functionality for altered requirements
Easy to plan, install and commission
QR code on unit for easy access to documentation
Eurovent certified and VDI 6022 Hygiene compliant

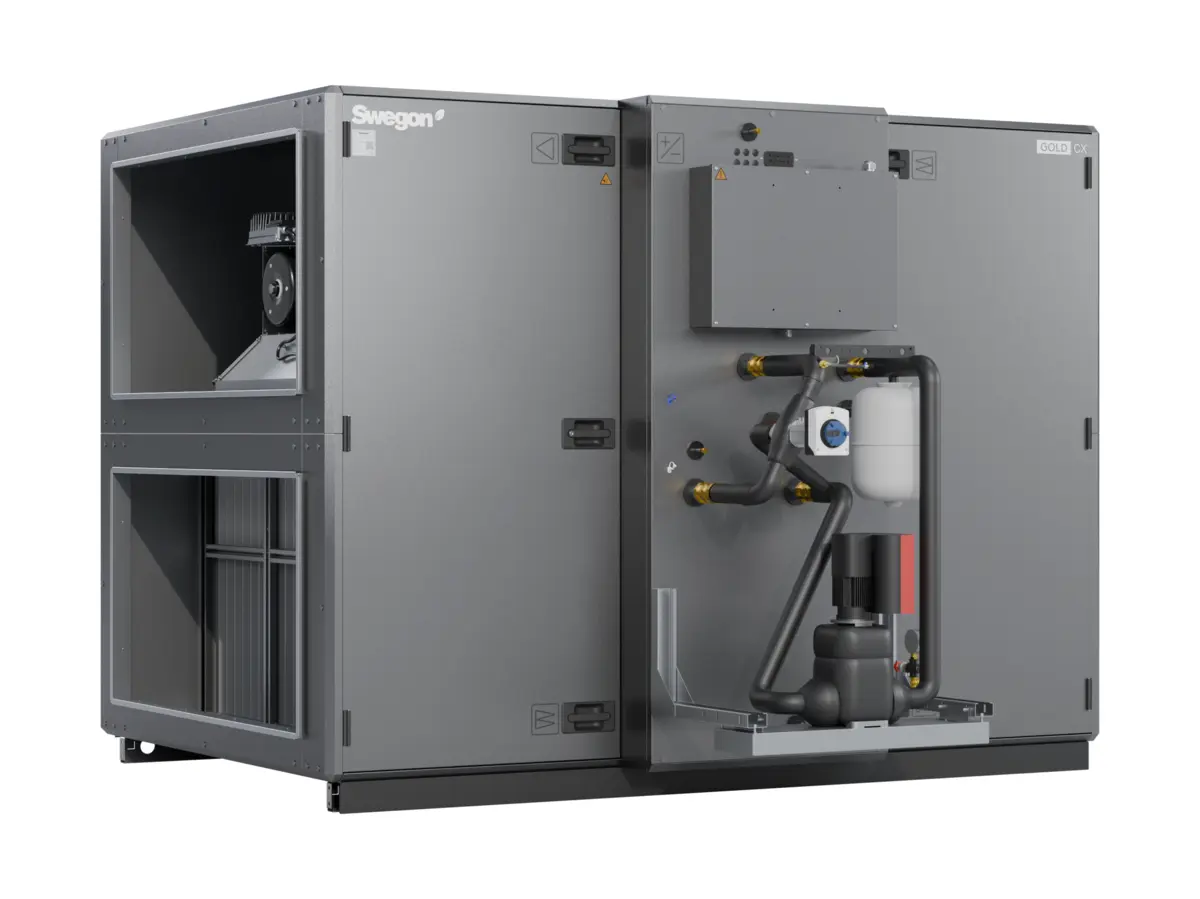

	GOLD RX	GOLD PX	GOLD CX	GOLD SD	GOLD RX/HC
Heat exchangers	Rotary	Counterflow	Coil	Coil	Rotary
Air flow (m3/h) Ecodesign	290-39180	290-24840	1800-39188	290-39188	1620-25100
Air flow (m3/s) Ecodesign	0.08-10.9	0.08-6.9	0.5-10.9	0.08-11	0.45-6.9
Eurovent-certification
Control and system integration
Outdoor installation (optional extra)
Top connection			–	–
L-concept			–	–
Integrated reversible heat pump	–	–	–	–
Option of separated air flows	–	–	–		–
Customisable for hygienic design (optional extra)	●●●●	●●●●	●●●●	●●●●	●●●
High level of general customisability	●●●●	●●●●	●●●●	●●●●	●●●●
Superior energy recovery	●●●●●	●●●●	●●●	●●●	●●●●●
High-level internal air tightness	●●●	●●●●	●●●●	●●●●●	●●●

You need to allow cookies for marketing if you want to view this type of content

From industry first to sustainability leader

At its launch in 1994, the GOLD Air Handling Unit was an all-new concept that changed the industry standard. With its pioneering design and innovative features, the GOLD unit set a new benchmark for energy efficiency and performance. Three decades later, GOLD remains the cornerstone of Swegon’s proposition.

Today, GOLD continues to lead the way. With a focus on sustainability, we are committed to reducing the embodied carbon of our units while extending the lifespan of existing units already in the market. By introducing recycled and renewably produced steel with Magnelis® coating (C5) inside our units we have reduced the total GWP by around 10% and a GOLD unit now contains roughly 15% recycled material.

Learn more about what makes this icon unique

Support from project start to finish

Pre-sales support

Swegon makes it easy to find the best products for the job, but also early-stage simulation tools to make sure the system is optimised and the requirements are set at the right level from the very beginning.

AHU Design is a product selection software that simplifies the process of sizing and configuring your air handling unit. It allows you to perform advanced energy calculations to ensure that the solution is optimised to meet your requirements. It permits flexible exports via plug-ins of your CAD designs and is integrated with our Mollier diagram to calculate temperature and humidity change etc.

Useful links:

AHU Design selection software

BIM library

Mollier tool

After-sales support

We know our products inside and out. Contact your nearest service office for assistance with commissioning, repair and maintenance of your ventilation system. If you have technical installation questions, would like to order spare parts or submit a fault report, please contact us for quick support.

All instruction manuals are available via our document search or by scanning the QR code on the air handling unit.

Useful links:

FAQ

Document search

System optimisation

Several Swegon products can be interconnected and optimised. Systems and crossover products that function on multiple levels help create an optimal indoor climate solution that brings the highest comfort at the lowest energy cost.

GOLD MultiLogic is a system that operates 2 or more GOLD units installed in the same duct system so that they behave as one unit. It combines the benefits of parallel and serial operation in a hybrid solution for lowest energy consumption, enabling lower airflow using several smaller air handling units rather than one large unit. Smaller units are generally easier to install and offer space optimisation and having multiple units also simplify maintenance and service with redundance possibilities. READ MORE

SMART Link+ connects GOLD air handling units with our chillers and heatpumps and links the indoor climate demands to an optimised production of heating and cooling. As the SMART Link+ is an embedded standard option on Swegon control platforms SMART Link reduces on-site installation time and costs as all that’s needed is to connect all units to a network.

WISE is a complete system for demand-controlled indoor climate. The basic purpose of WISE is to adjust the indoor climate to exactly the level required. It ventilates, cools and heats neither too much – which costs energy – nor too little – which adversely affects comfort. With WISE you can combine high energy efficiency, an ideal indoor climate and a full overview of the whole system.

Our digital services are gathered under the name of Swegon INSIDE. These services allow different target groups to monitor, control and visualise compatible units in an HVAC solution, as well as the indoor climate inside a building. Get more from each installation by connecting products to our cloud and make use of the data to monitor the performance.

Sustainability

GOLD is built to reduce environmental impact throughout its entire life cycle – from material choice and manufacturing to energy use, refurbishment and digital optimisation.

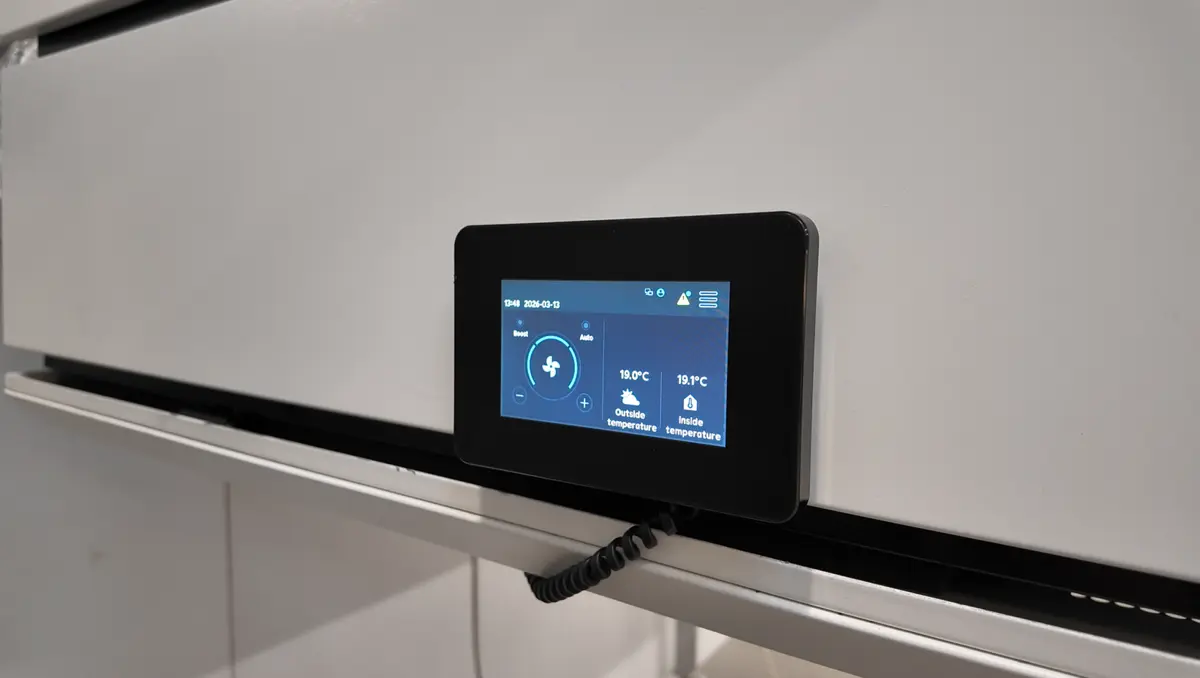

Superior controls

All-inclusive – The IQlogic control system ensures reliable operation, helps reduce energy costs and simplifies system management. It is plug-and-play from start, adaptable and user-friendly.

Energy360

Supports planning, monitoring, reporting and optimisation, giving you full control over energy use – from the configuration stage to daily operation.

All videos

You need to allow cookies for marketing if you want to view this type of content

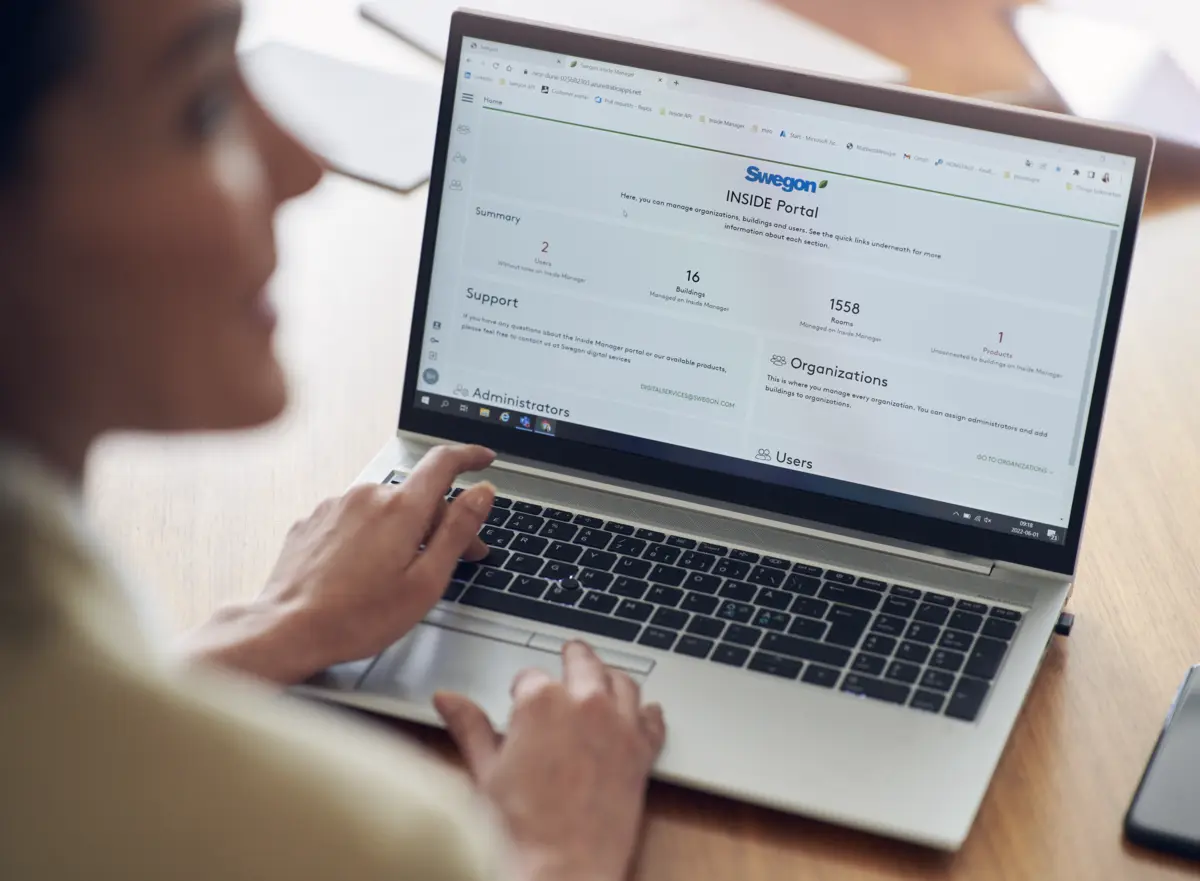

Swegon INSIDE Ready - connect products to Cloud

Connecting products to the Swegon INSIDE cloud enables digital services and remote monitoring.

ALL GOLD units are delivered Swegon INSIDE Ready, meaning ready to connect to the Swegon INSIDE cloud. It is provided through a software update in IQLogic along with a digital certificate that makes sure that each GOLD unit is a verified product, permitted to connect to the Swegon INSIDE Cloud.

Not only air handling units are connected to the Swegon INSIDE cloud, allowing you to manage many different Swegon products in the same cloud, using the same tools. That is one of a kind.
